Outer Tie Rod End Manufacturer
in China
- Factory Direct Pricing
- OE Number Matching
- Private Label Support
3000 +
Models Application

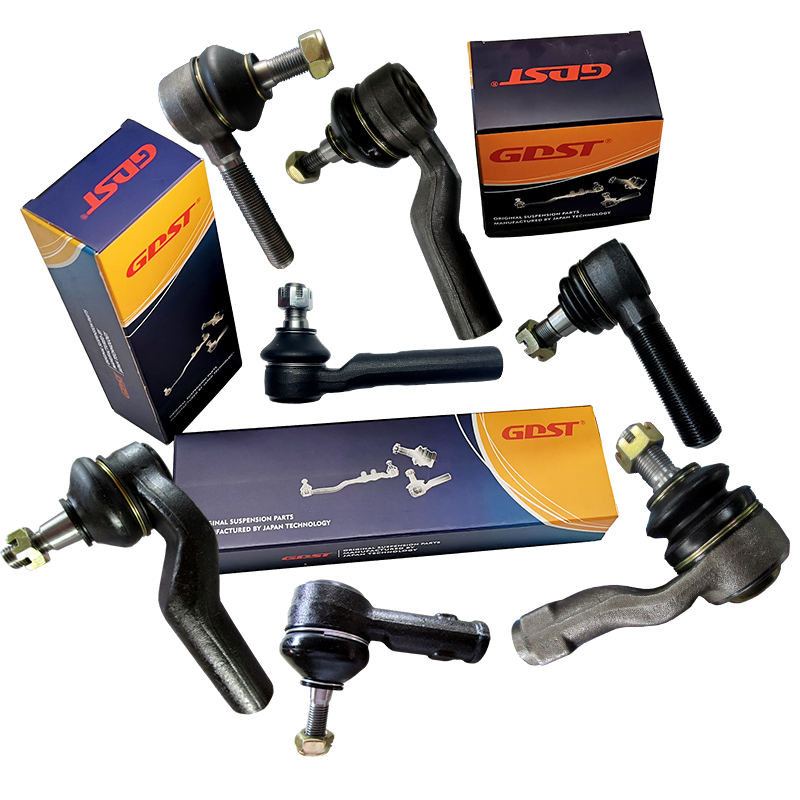

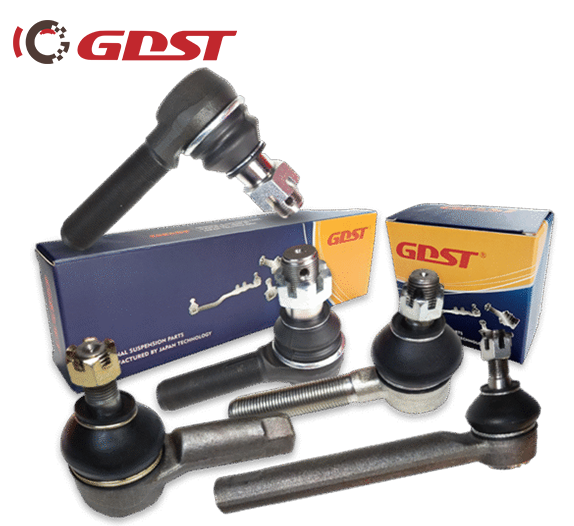

China Reliable Tie Rod End Manufacturer
Wuhu GDST Auto Parts Co., Ltd is a professional tie rod end manufacturer with 20 years of experience, and our products are sold in more than 100 countries in America, the Middle East, Africa, and Asia, and are trusted by customers all over the world.
We offer a full range of outer tie rod ends products for Japanese, American, European, and Korean vehicles, including passenger cars, light and heavy trucks. We have developed more than 3,000 models and can customize new products according to customers’ needs.
GDST tie rod end replacements use high-quality materials with excellent abrasion, corrosion, and impact resistance. The surface of the product is zinc-plated and electrophoresis-treated to effectively prevent rust, and key parts such as the ball and screw are heat-treated to ensure longer service life and stable performance.
Choose GDST Tie Rod End Supplier and reap the benefits of quality, service and value!
How GDST Helps You Grow Your Business
Why do brands and wholesalers around the world choose GDST for long-term partnerships? From product quality to supply stability, our core advantages are clear.
OE Quality Products
We develop and manufacture products to match OE size and material specifications, ensuring accurate fitment and consistent quality.
Factory Pricing
Buy directly from us and cut out unnecessary middlemen, giving you better margins and more competitive pricing in your market.
Delivery on Time
With a stable 60-day lead time for standard orders, you can plan your purchasing and delivery schedules with confidence.
Low MOQ
A 100-piece MOQ per model keeps production efficient while giving you a low-risk way to test our product quality and market response.
Rich Experience
Serving customers in 100+ countries gives us a clear understanding of different markets and competitive demands, helping you make smarter choices and build a stronger position in your market.
Custom Brand Solutions
Customize your own brand packaging and product labeling, so you can build your brand, control your pricing, and protect your market margins.
1-Year Warranty
With comprehensive after-sales support and a 1-year warranty, you can sell our products with greater confidence and less worry.
Easy Product Expansion
Our extensive product range and reliable supply resources make it easier to add new products, expand your range, and grow your business with one trusted supplier.
Ready to boost your market with factory-direct tie rod ends? Contact our team today for a custom quote.

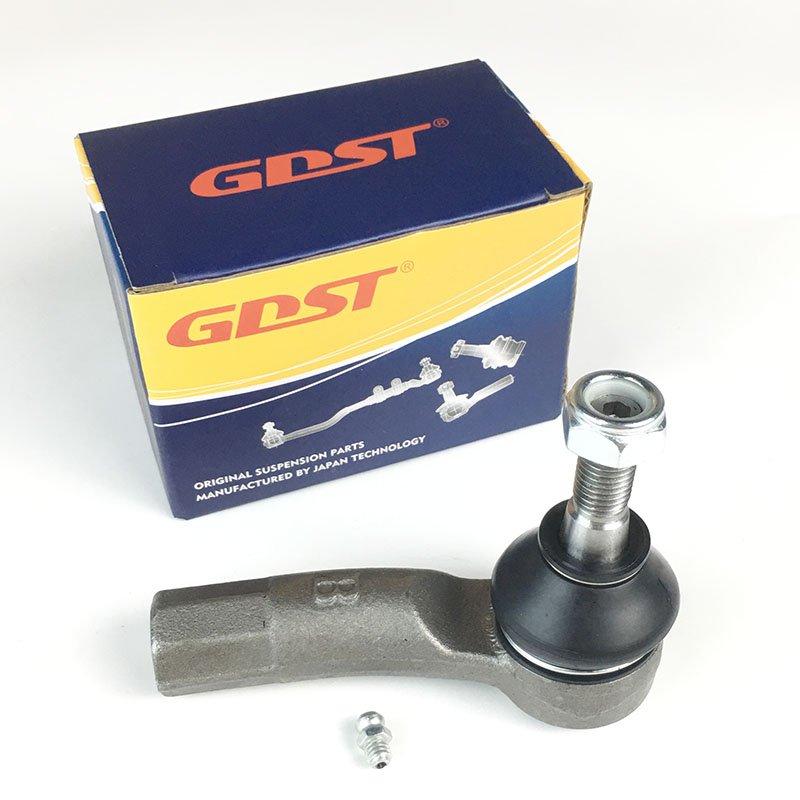

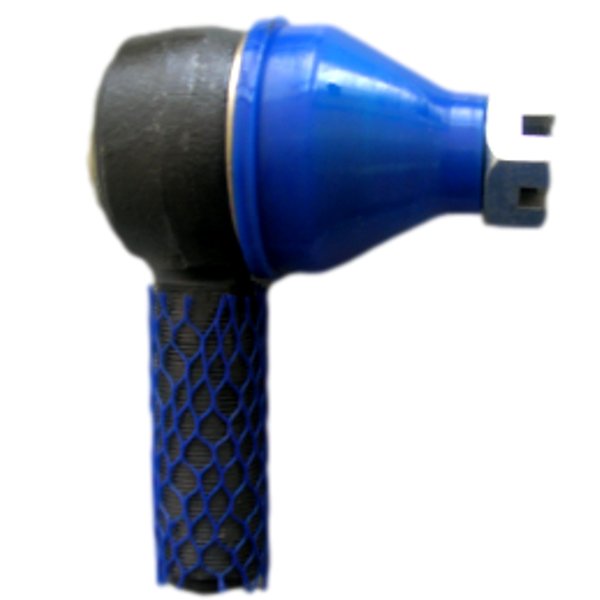

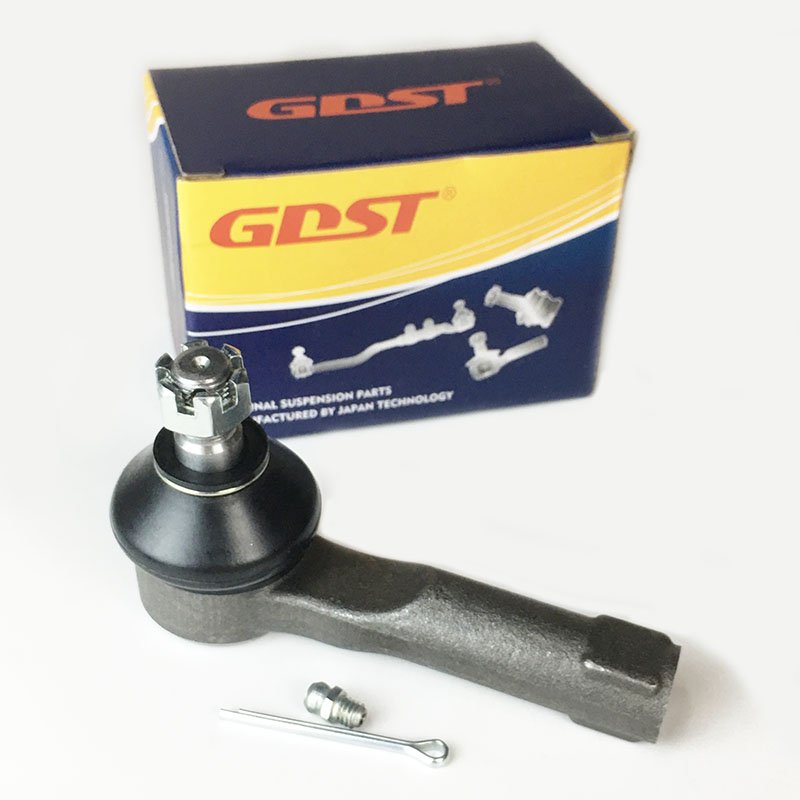

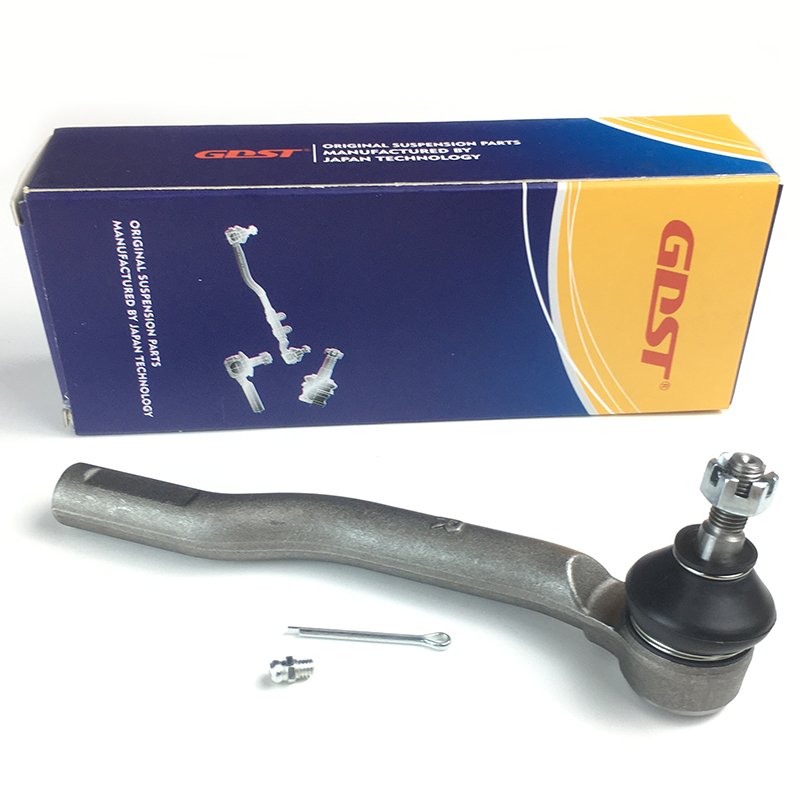

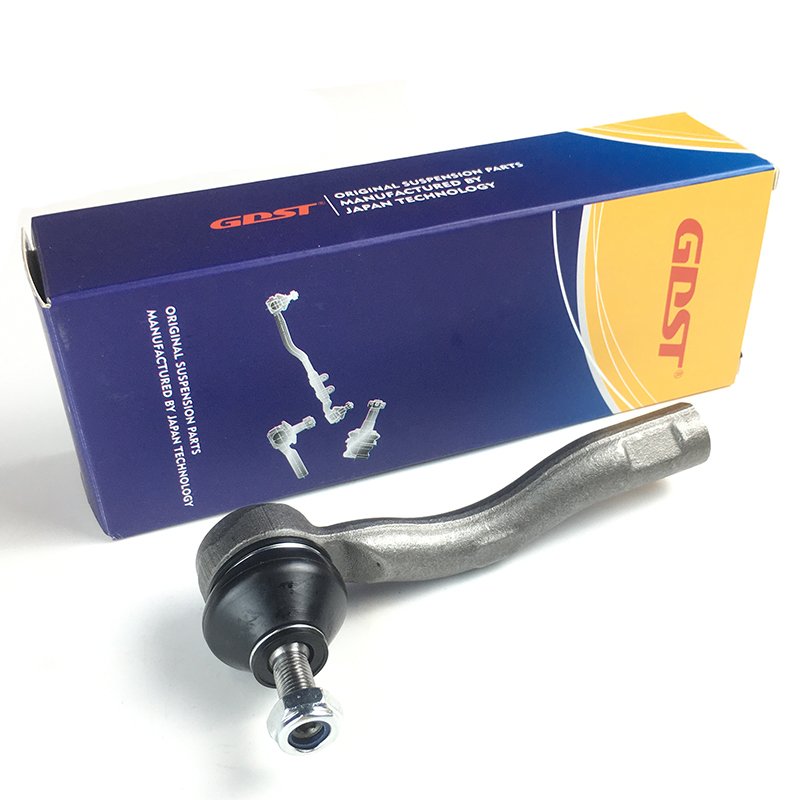

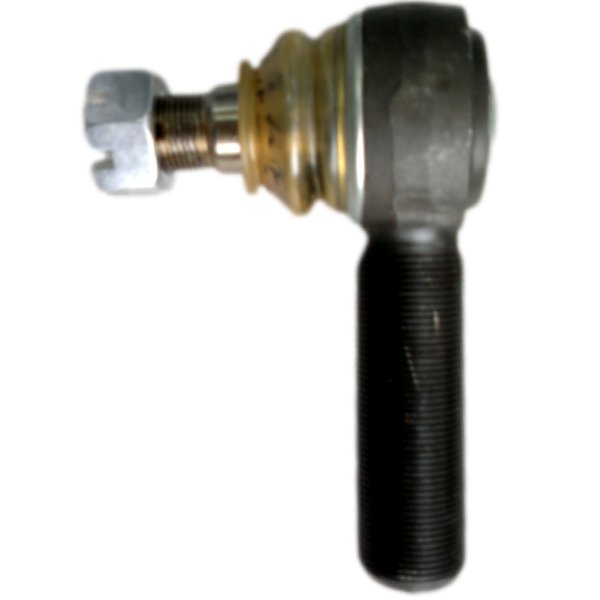

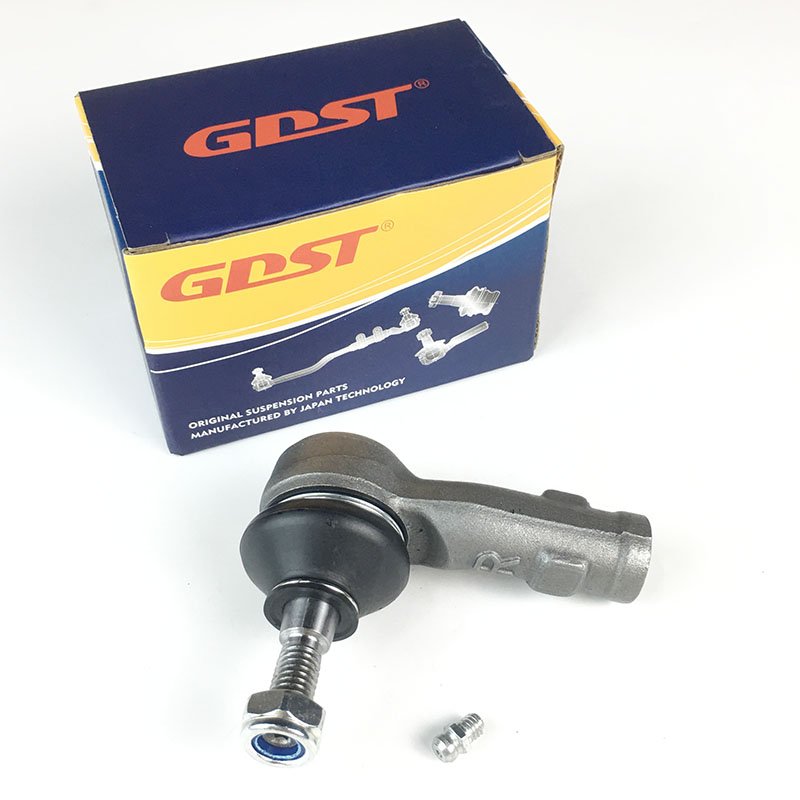

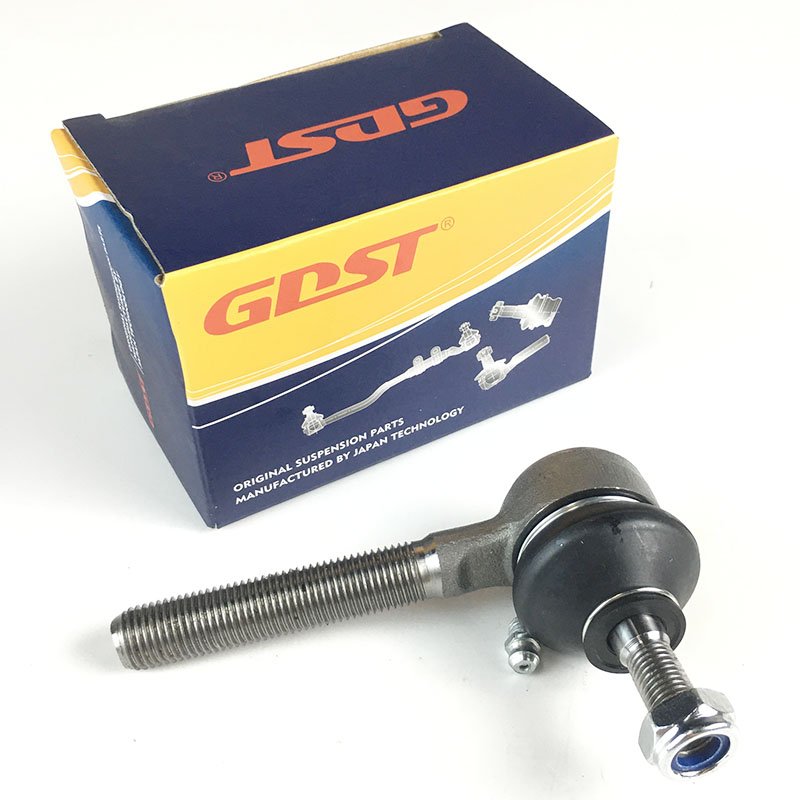

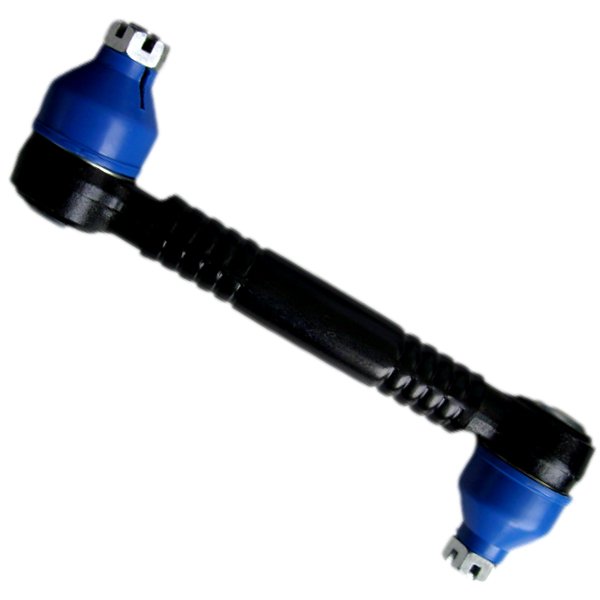

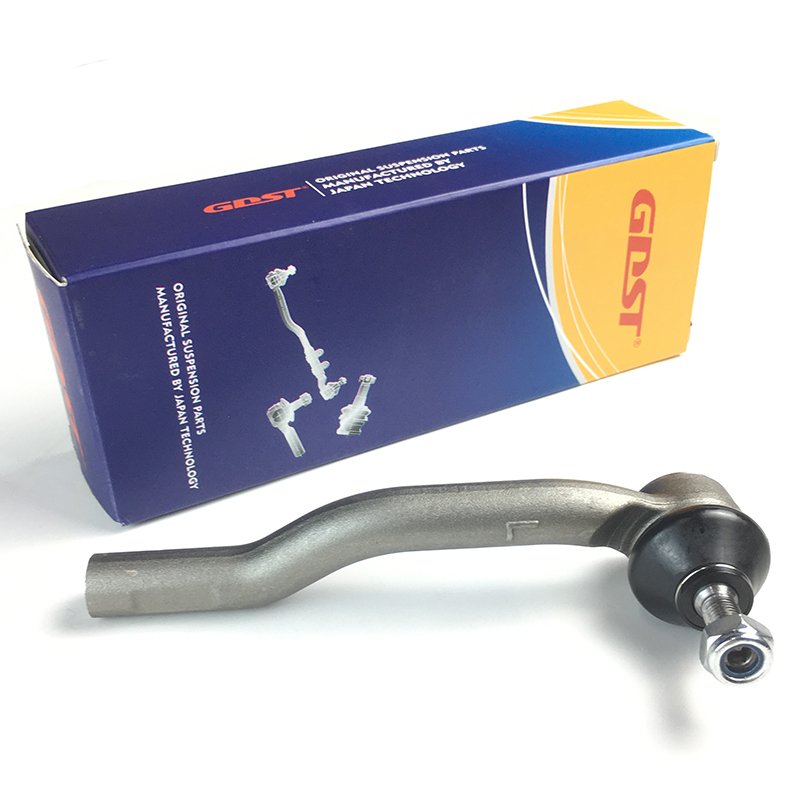

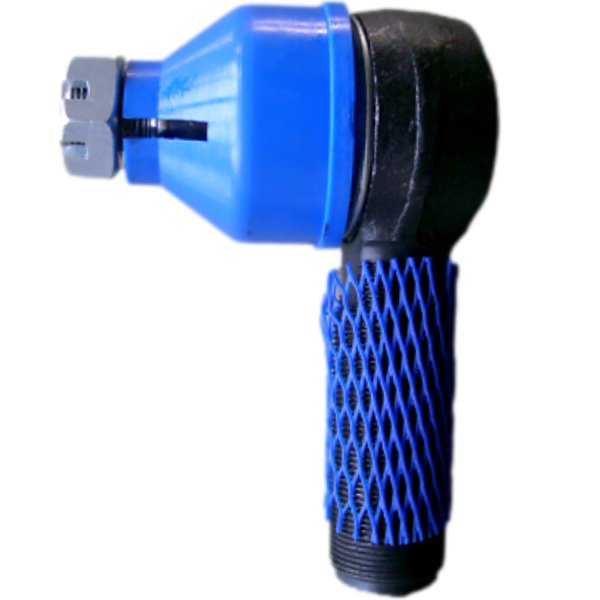

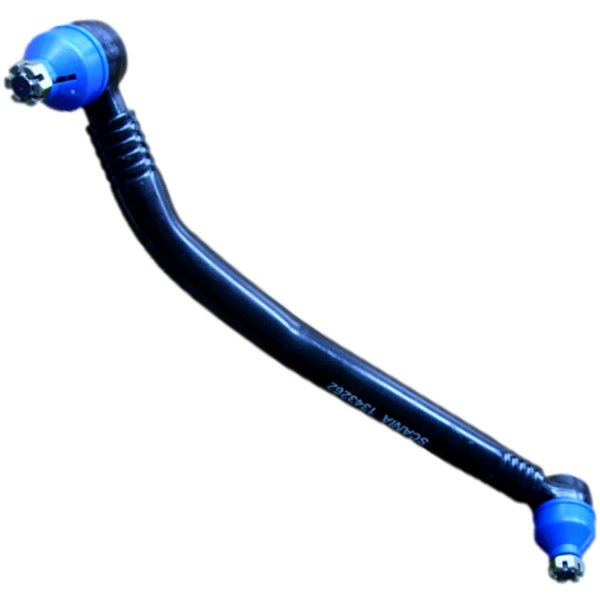

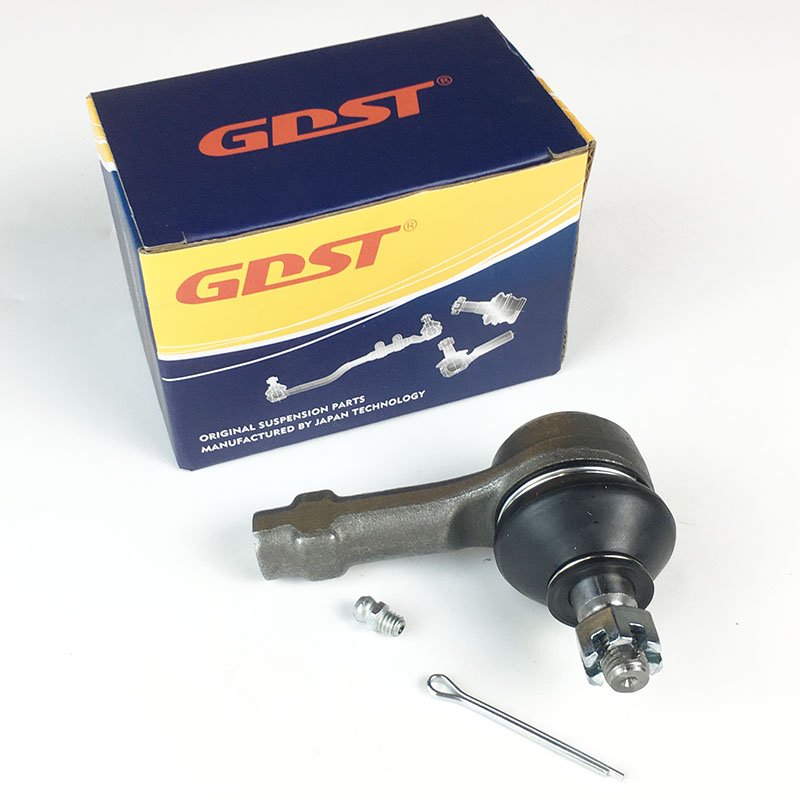

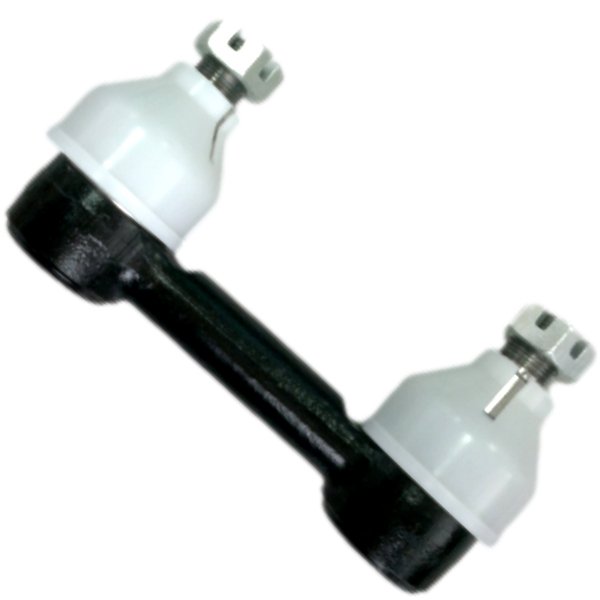

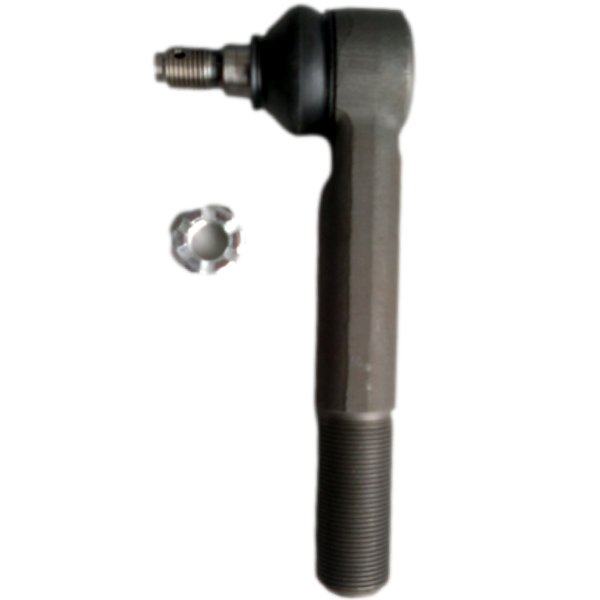

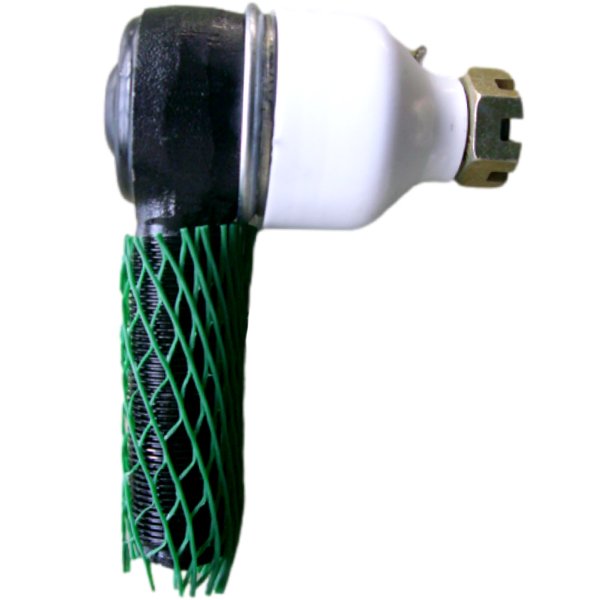

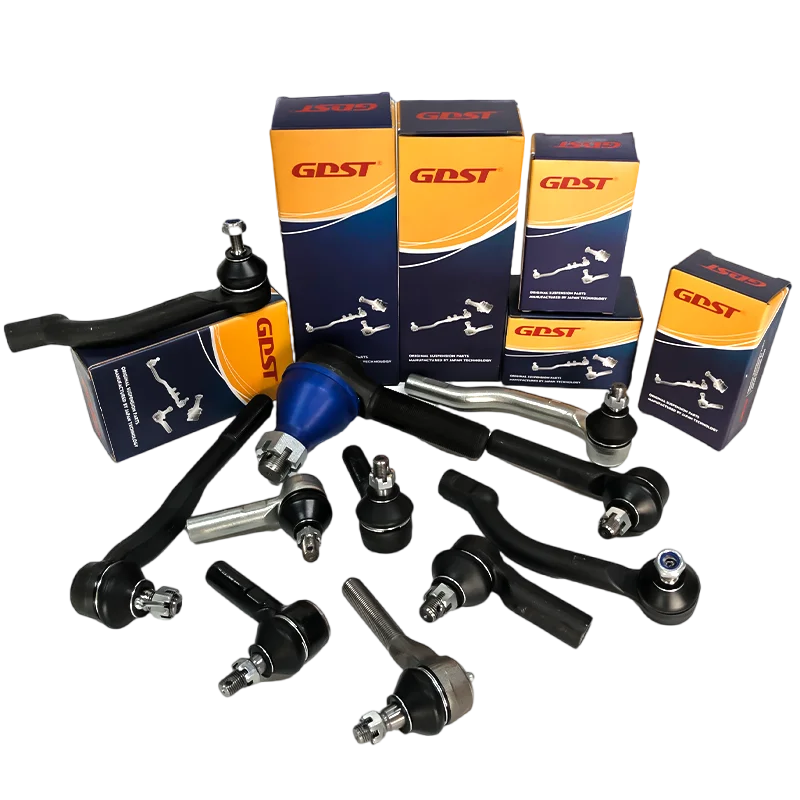

Hot Selling Tie Rod Ends
With 3,000+ tie rod end models available, we can help you quickly match the right parts to your market and vehicle applications. Send us your requirements and let’s get started.

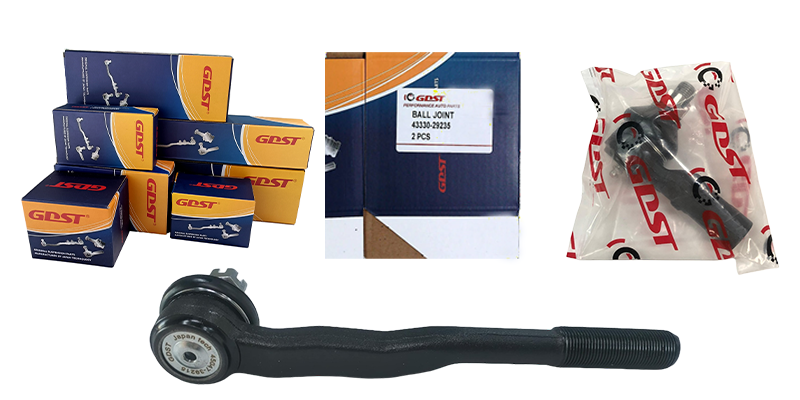

Custom Tie Rod Ends for Your Brand
From sample-based new model development to branded product packaging, we offer practical customization options for importers, distributors, and private-label brands.
Sample-Based New Development
Have a Tie Rod End model that is not yet in our range? If you have a physical sample, send it to us. We can develop the model based on your sample with no development charge.
Custom Product Marking
Add your brand name and OE number directly to tie rod ends. Product marking helps keep your private-label products easy to identify and consistent across your product range.

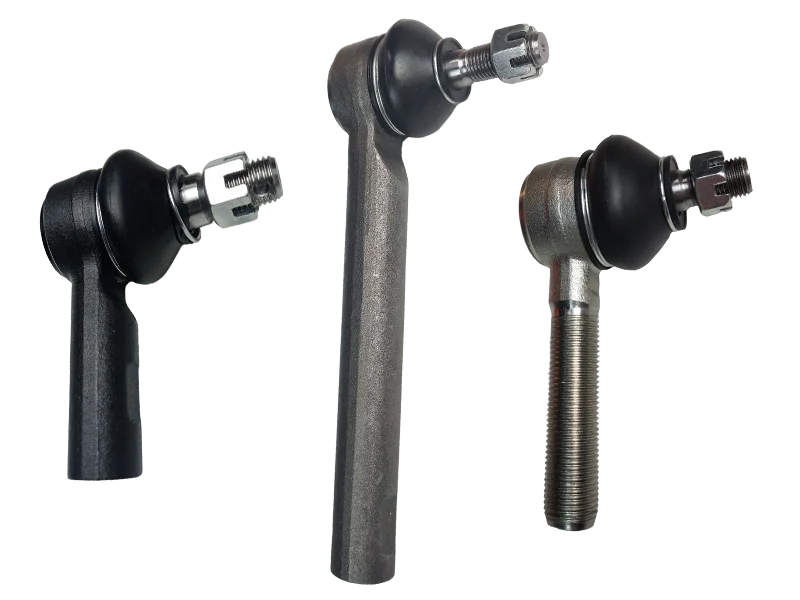

Three Finish Options
Choose black, natural, or silver finish according to your brand positioning, product range, and local market preference.

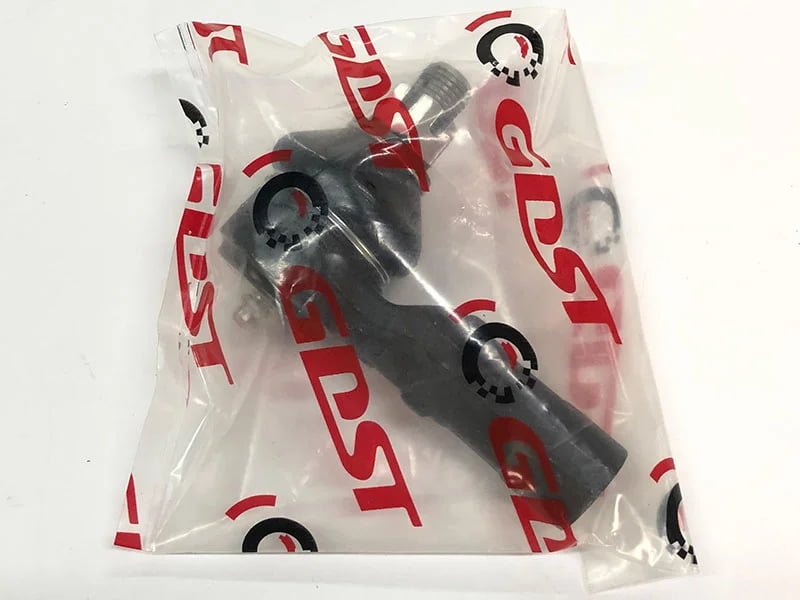

Custom Color Bags
Customize poly bags with your brand logo and preferred colors. Send us your logo, and we can prepare a branded bag design for your Tie Rod Ends.

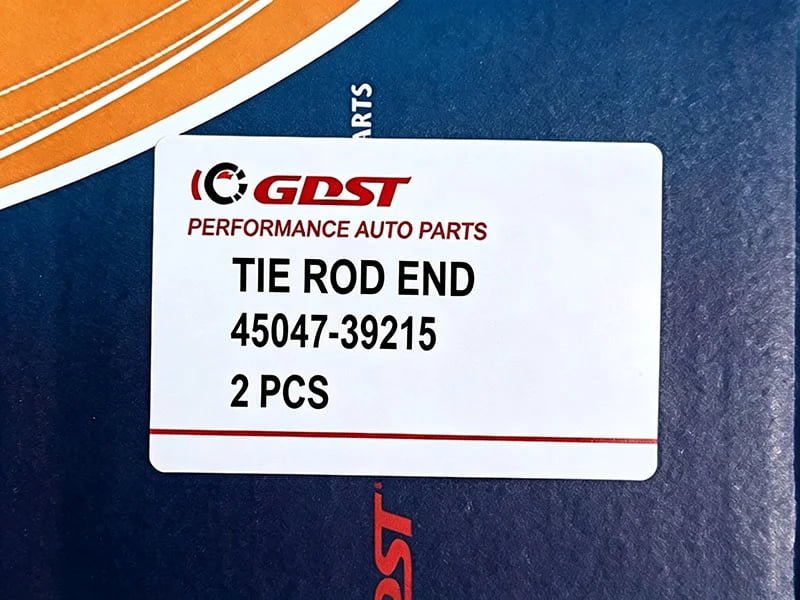

Custom Color Labels
We provide free label design based on the information you want to show, such as your logo, product name, OE number, and packing quantity. Clear labels also make stock and warehouse handling easier.

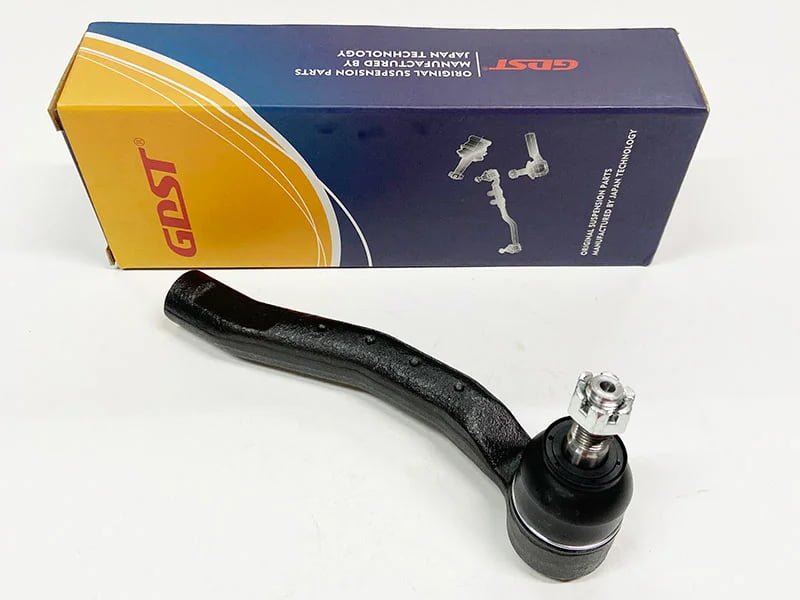

Custom Color Boxes
We provide free color box design for your Tie Rod Ends. Tell us your ideas or send us a packaging sample you like, and we can create a box around your brand.
Private Label Support
Build Your Own Tie Rod End Product Line
Have a sample, OE list, logo, or packaging idea? Send us your requirements and we can help with product development, product marking, finish selection, and branded packaging.
Tie Rod End Components
A clear component breakdown helps you evaluate material reliability, service life, and batch consistency before placing OEM/ODM orders.
Designed for Long-Term Performance
-
Nut
8.8 Grade Bolt- Made from 8.8 grade bolt steel with a tight fit and high strength, providing stable fastening performance and reducing loosening risks during aftermarket replacement.
-
Ball Stud
40Cr Heat Treated- Manufactured from 40Cr heat-treated steel with twice the strength of standard 45# steel. 100% inspected for internal and external cracks to prevent breakage in service, while mirror finishing achieves OE-level roughness for high durability, toughness, and strength.
-
C-Ring
65Mn Heat Treated- Made from heat-treated 65Mn material with no sharp ends, avoiding any damage to the dust cover during assembly and transport while maintaining reliable retention inside the assembly.
-
Dust Cover
Premium Neoprene · -30°C to +70°C- Crafted from premium neoprene to keep dust, sand, and water out, withstanding temperatures from -30°C to +70°C for long service life and fewer warranty issues.
-
Housing
Forged 45# Steel- Forged from special 45# steel to achieve the most ideal grain structure, delivering a strong and precise seat that stays durable under repeated suspension movement.
-
Back Plate
ST12 Cold-Rolled Steel- Manufactured from ST12 cold-rolled steel with high strength, ensuring the ball stud will not be extruded out of the housing and supporting consistent quality across bulk orders.
-
Nylon Structure
500P Polyoxymethylene- Made of 500P polyoxymethylene with grease channels, ensuring grease flows through the plastic ball seat to the ball stud for a smooth surface and long service life.

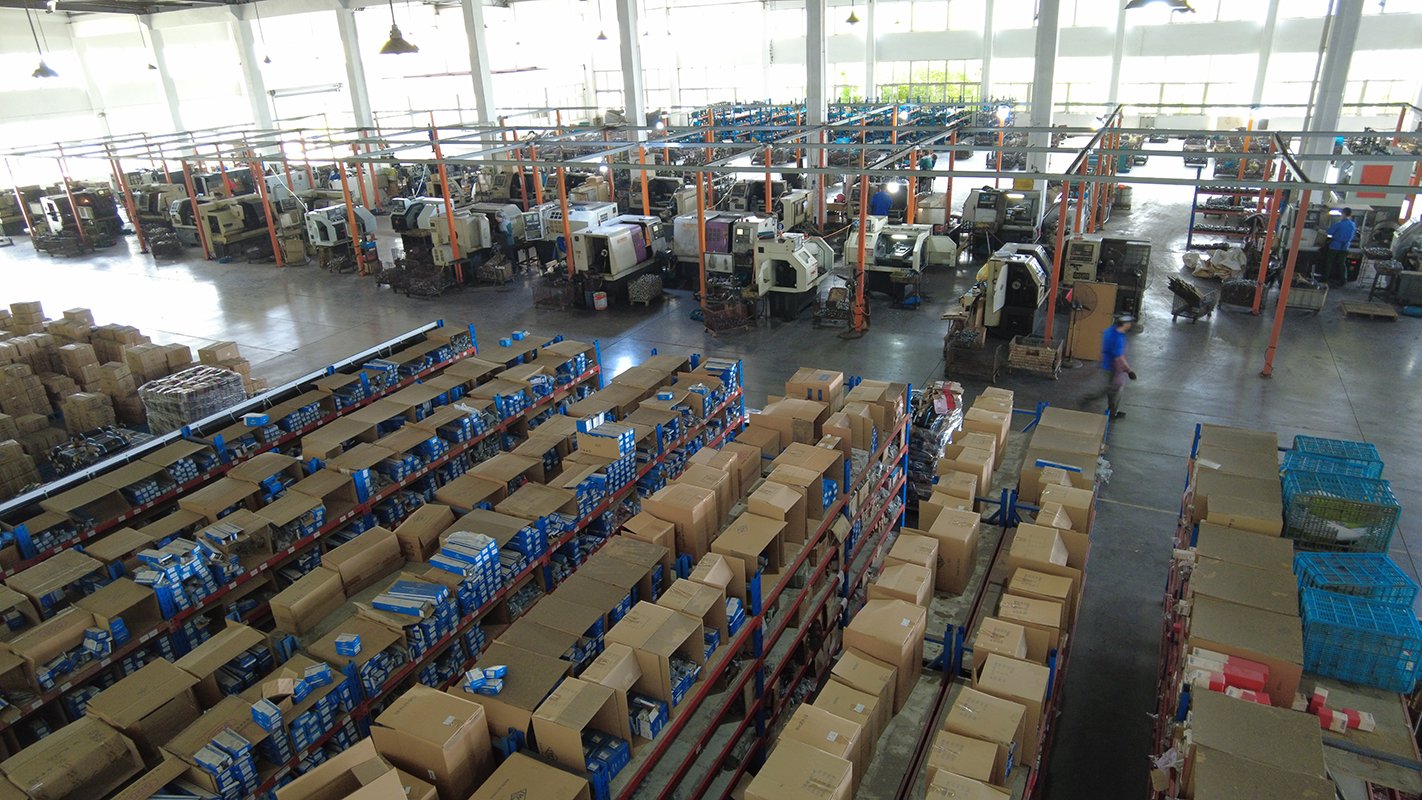

GDST Tie Rod End Manufacturing Facility
With an IATF 16949-certified quality system and established production capacity, we support aftermarket customers with OE quality, factory-direct supply, and stable delivery.
2010
Established Year
500+
Employees
120,000㎡
Workshop Area
200K+
Monthly Capacity (pcs)
8+
Production Lines
Tie Rod End Production Process
GDST tie rod ends go through a controlled multi-stage production process, from blank preparation and precision machining to surface treatment, assembly, packaging, and shipment.
From Metal Blanks to Ready-to-Ship Tie Rod Ends
Each production stage focuses on dimensional accuracy, thread quality, secure assembly, surface protection, and consistent aftermarket fitment.
14
PROCESS STEPS
100%
PROCESS CONTROL
FINAL
INSPECTION
Blank Preparation
Metal blanks are prepared as the starting material for tie rod end machining, providing the required material shape and allowance for subsequent processing.
Shot Blasting
The blanks are shot blasted to remove surface scale and residues, creating a cleaner surface for precision machining.
Large Drilling
The main drilling operation creates the required internal opening in the component, preparing it for the following boring and machining operations.
Internal Boring
The internal hole is precisely bored to the required size and surface condition, creating the correct fit for the tie rod end's internal components.
Smooth Rod Turning
The rod section is turned to achieve the specified diameter and smooth surface finish required for accurate assembly and reliable thread formation.
Groove Machining
Specified grooves are machined onto the component to provide the required positioning and functional interface for subsequent assembly.
Thread Rolling
Threads are formed by rolling to achieve consistent thread dimensions and a clean profile for reliable connection with the mating steering components.
Ultrasonic Cleaning
Machined components are cleaned with an ultrasonic process to remove machining residues, oil, and fine contaminants before surface treatment and assembly.
Surface Treatment
The components receive the specified surface treatment to improve surface protection and resistance to corrosion during storage, transportation, and vehicle use.
Pre-Pressing
Components are pre-pressed into the required position before final riveting, helping establish stable assembly dimensions and proper component seating.
Rotary Riveting
Rotary riveting secures the assembled components in position, creating the required retention force and stable connection within the tie rod end.
Component Assembly
The processed components are assembled into the complete tie rod end, with each part positioned according to the required assembly specifications.
Packaging
Finished tie rod ends are packed according to order requirements, including GDST packaging or customized private-label bags, boxes, labels, and shipping marks.
Shipment
Packed orders are prepared for shipment according to customer requirements and released for delivery after the necessary production and order checks are completed.
Tie Rod End Quality Inspection
Every tie rod end is inspected through multiple quality control stages before shipment. Our QC process checks material properties, surface protection, hardness, joint strength, boot performance, service life, and joint clearance to help ensure consistent fitment and reliable steering performance.

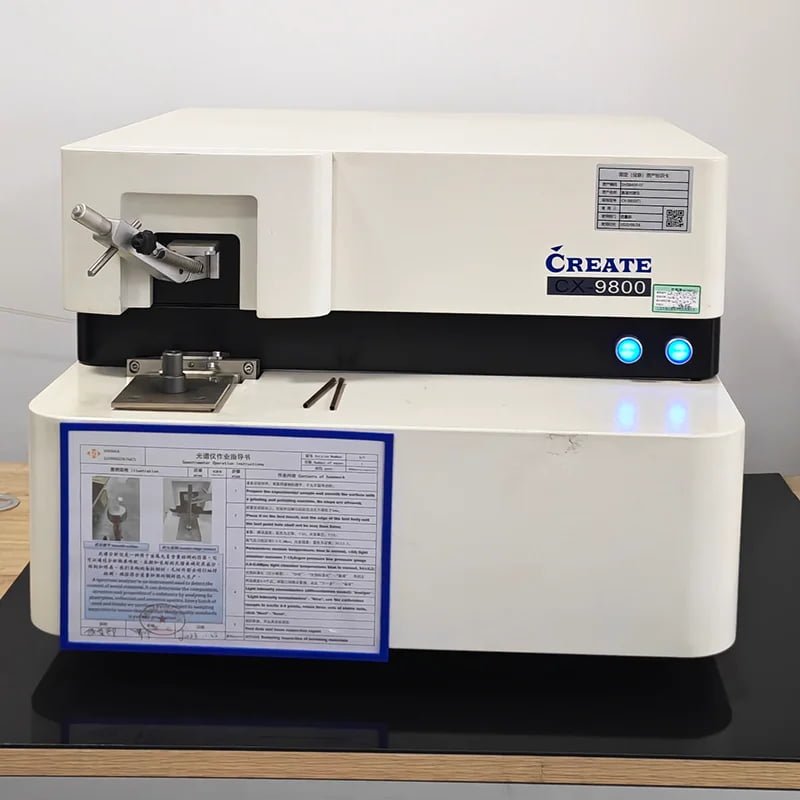

- Material Composition Analysis

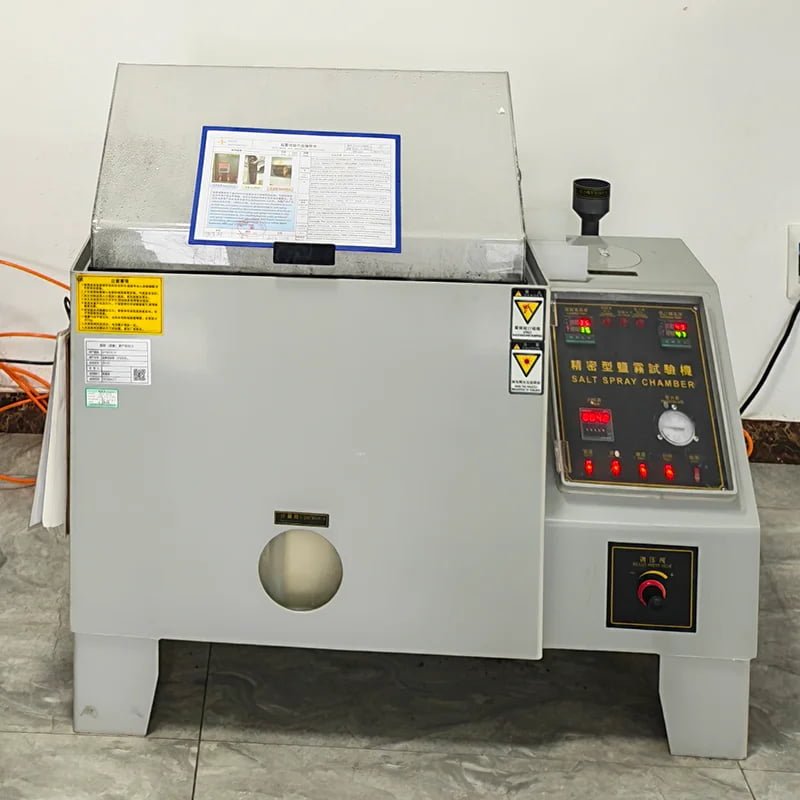

- Surface Treatment & Salt Spray Testing

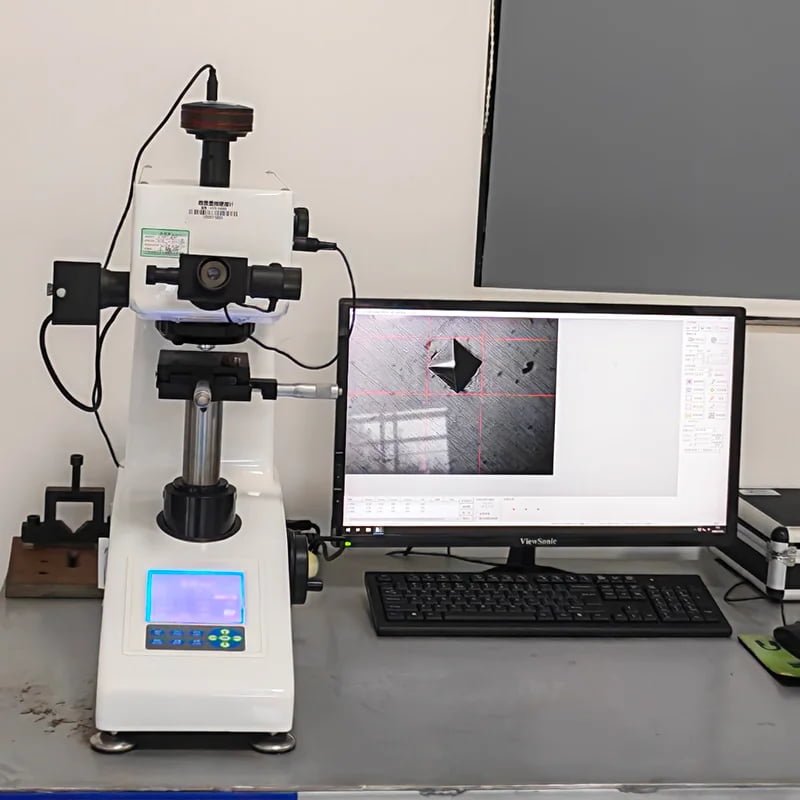

- Vickers Hardness Testing

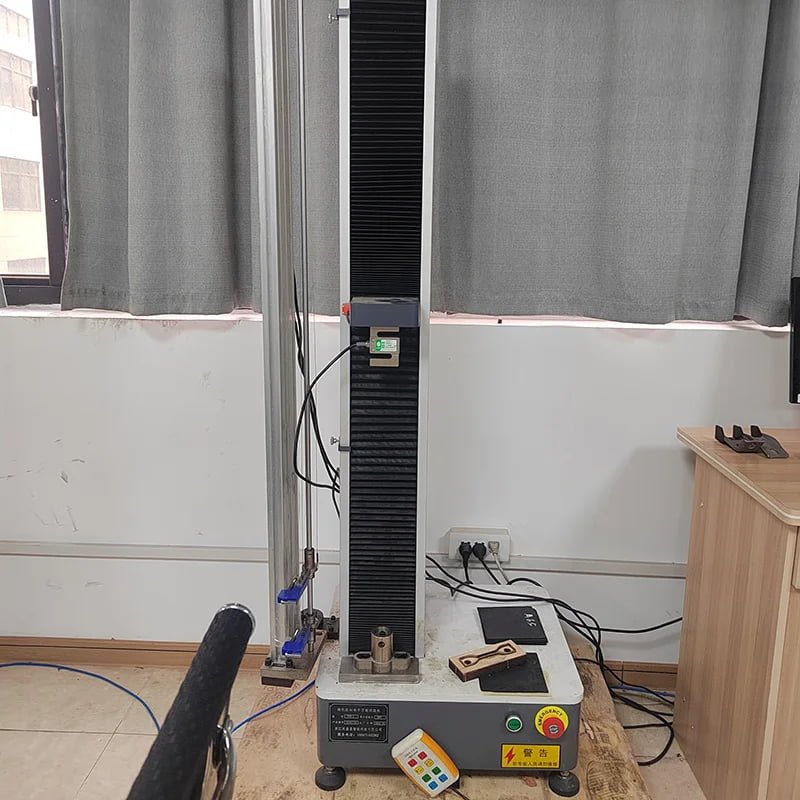

- Push-Out & Pull-Out Force Testing
- Dust Boot High & Low Temperature Testing
- Durability & Service Life Testing
- Joint Clearance Testing
GDST Main Markets
This is not our first time working with your market. We have supported customers across different countries with quality products, private-label solutions, and factory-direct supply for long-term growth.
Trusted by Customers Worldwide
See what our customers have to say. Read feedback from customers we work with in different markets around the world.
Product Quality Feedback
Service Attitude Review
After-Sales Support
Delivery & Packaging
Want to see how we can support your business?
Contact Us on WhatsAppFrequently Asked Questions
Everything you need to know about our tie rod ends and partnership terms.
How to Order Tie Rod Ends From GDST
Send us your part numbers, required quantities and packaging requirements. We will help confirm the right models and provide a quotation.
-
Submit Tie Rod End Inquiry
Send us your OE numbers, required quantities, and any private label or packaging requirements. Complete details help us match the correct tie rod end references and prepare an accurate offer faster.
-
Detailed Quotation in 8 Hours
Our sales team reviews your tie rod end list and packaging needs, then returns a complete quotation with unit prices, MOQ, lead time, and shipping terms within 8 hours for standard inquiries.
-
Confirm Details & Receive PI
Once prices, quantities, delivery terms, and packaging are confirmed, we draft a formal Proforma Invoice with full order details. The PI is generally valid for 15 days, giving you enough time to complete internal approval and payment planning.
-
Production After 30% Deposit
After the 30% deposit is received and the bank slip is verified, production is scheduled and raw materials, components, molds, and packaging are prepared. You receive regular progress updates covering forging, CNC machining, thread forming, heat treatment, surface treatment, and packing.
-
Packing List & Balance Notice
When goods are ready and pass 100% final inspection, we send you the detailed shipping packing list, carton and pallet photos, and a formal notice of the final balance payment due before shipment booking.
-
Shipment & Customs Documents
Once the balance is confirmed, we coordinate loading, booking, and customs declaration with your forwarder, arrange vessel space, and send the customs clearance documents including commercial invoice, packing list, contract, and bill of lading after shipment.
-
Vessel Status Tracking
We keep tracking the vessel status and share key milestones as your cargo moves. As the shipment approaches the destination port, we remind you in advance so you can prepare customs clearance and inbound logistics without delay.
-
One-Year Warranty & After-Sales
Every tie rod end order is covered by a one-year warranty after receipt. If you receive feedback related to fitment, thread damage, corrosion, or product performance, contact our team and we will provide technical review and practical solutions.
Ready to Source Tie Rod Ends?
Send your OE list or sample details today -- our GDST team will respond within 8 hours.
